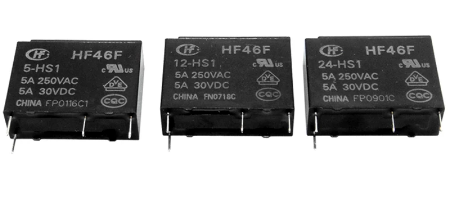

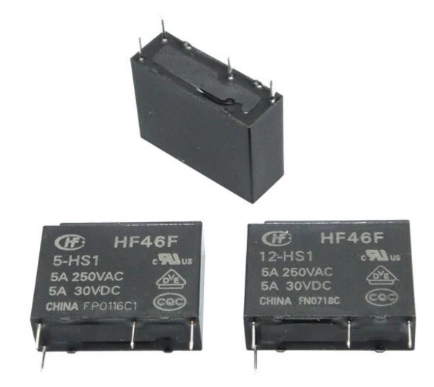

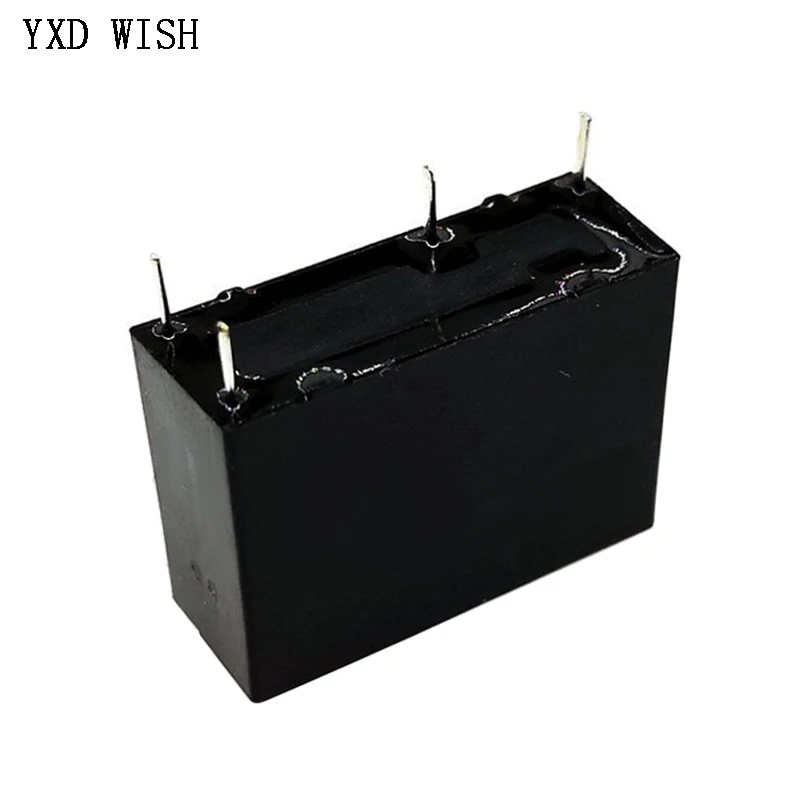

Relais HF46F 5V 12V 24V 5A
CATEGORIE: COMPOSANTS ELECTRONIQUE
ref: PO14 5V /PO15 12V /PO16 24V
250 DA
ajouter au panier
DETAILS
Applications: commandes pompe et ventilation, moteurs et utilisations industrielles.
| Type de relais |
électromagnétique
|
|
| Configuration des contacts |
SPST-NO
|
|
| Tension nominale de bobine |
12V DC
|
|
Charge de contacts AC @R
(avec charge de résistance) |
5A / 250V AC
|
|
Charge de contacts DC @R
(avec charge de résistance) |
5A / 30V DC
|
|
| Courant contacts maxi |
5A
|
|
| Tension de commutation |
max. 30V DC, max. 277V AC
|
|
| Version de relais |
miniatures
|
|
| Montage |
PCB
|
|
| Résistance de bobine |
720Ω
|
|
| Tension de bobine min. |
9V DC
|
|
| Tension de bobine max. |
15.6V DC
|
|
| Temps de réponse |
10ms
|
|

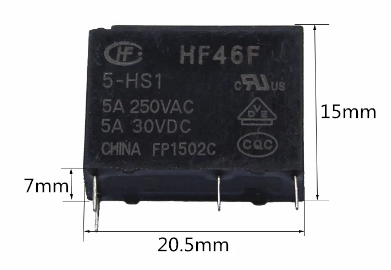

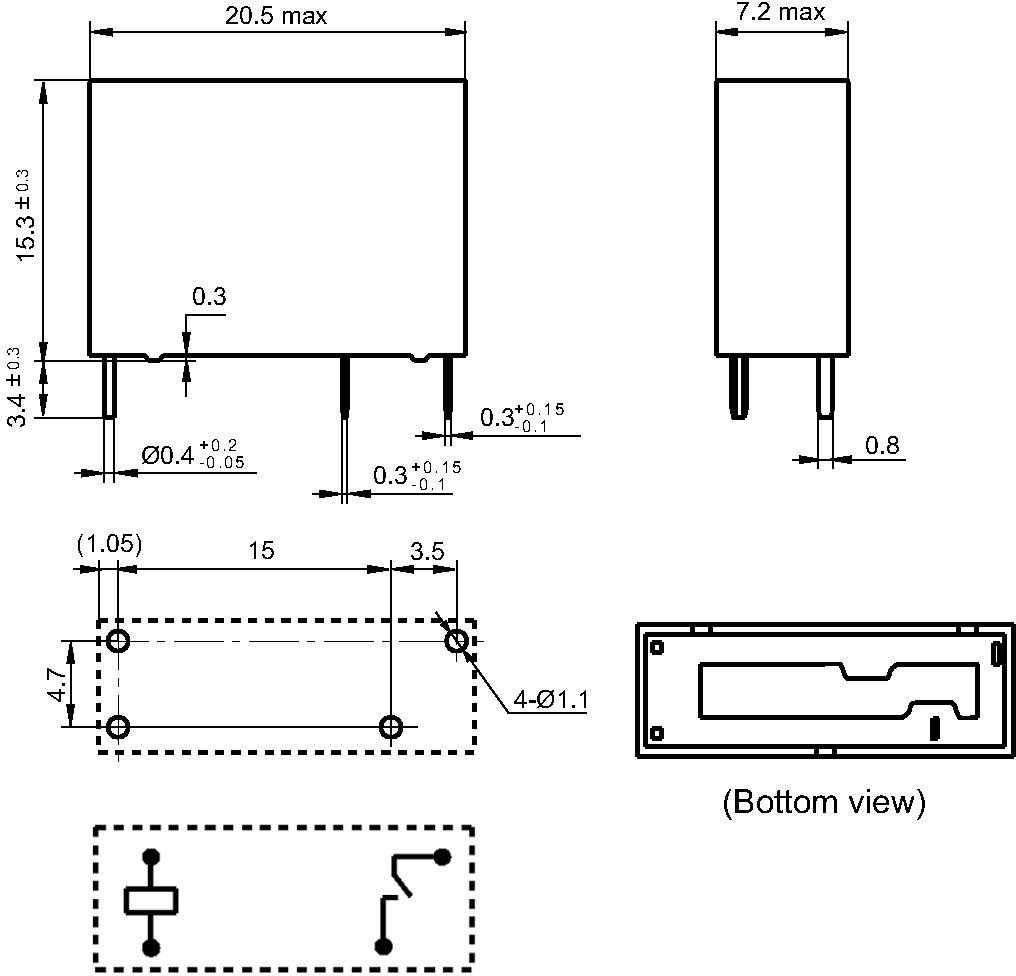

| Dimension extérieures |
20.5x7.2x15.3mm
|
|
| Temps de ralentissement |
10ms
|
|
| Consommation de courant par la bobine |
200mW
|
|
| Température de travail |
-40...85°C
|
|
| Résistance de broches |
100mΩ
|
5A HF46F relais 4Pin HF46F-5-HS1 HF46F-12-HS1 HF46F-24-HS1 relais de puissance Een Normaal ouvert 5 12 24 Vdc 5A 250VAC
