Acceuil » ENCODEURS ROTATIFS » Capteur de Mesure d'Angle à Induction Magnétique Encodeur magnétique AS5600 , 12 Bits

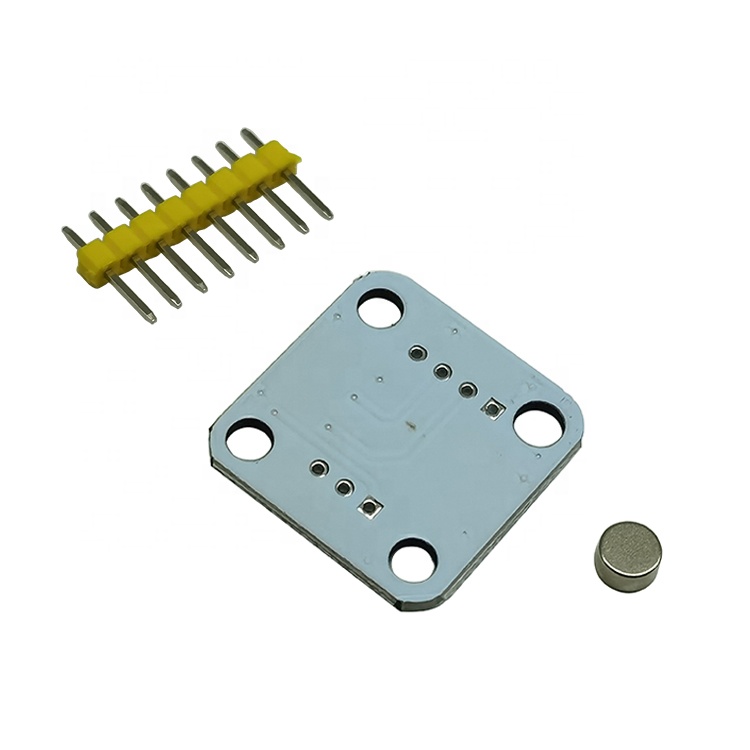

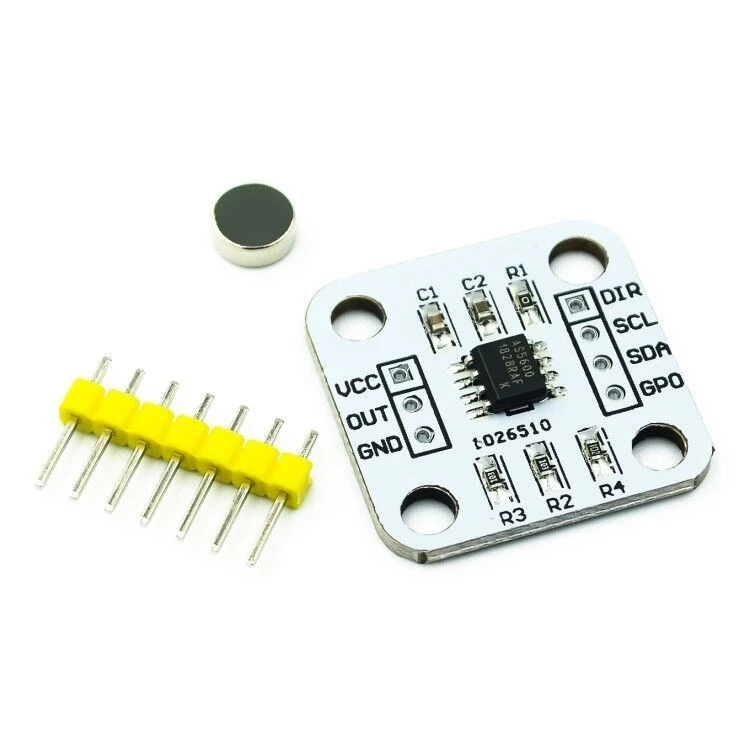

Capteur de Mesure d'Angle à Induction Magnétique Encodeur magnétique AS5600 , 12 Bits

CATEGORIE: ENCODEURS ROTATIFS

ref: DD09

800 DA

ajouter au panier

DETAILS

Caractéristiques:

Module de mesure d'angle d'induction magnétique sans contact.
Haute précision, une variété de modes de sortie: IIC, tension PWMAnd.

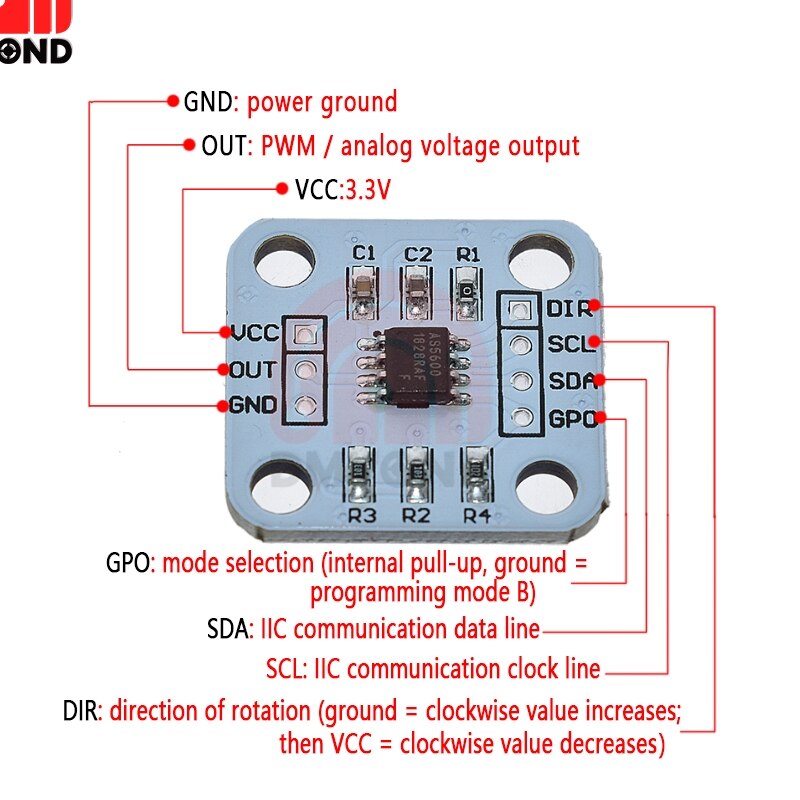

Paramètres électriques:

VCC	3.3V
GND	Puissance au sol
Sortie	Sortie de tension PWM/analogique
DIR	Sens de rotation (sol = la valeur augmente dans le sens des aiguilles d'une montre; thenVCC = les valeurs dans le sens des aiguilles d'une montre sont diminuées)
SCL	IICLa ligne d'horloge de communication
SDA	Ligne de communication IICData
GPO	Sélection de mode (traction interne au sol = programmation modeB)
