Relais A5W-K / A12WK / A24W-K 5V 12V 24V DIP-10 broches-10
CATEGORIE: COMP
ref: PO32 5V /PO33 12V /PO34 24V
250 DA
ajouter au panier
DETAILS
relais A5W-K A12W-K A24W-K 5 V CC 12 V CC 24 V CC 5 V 12 V 24 V DIP-10 broches-10
Un relais inverseur bipolaire à profil très bas et haute sensibilité, dans un boîtier compact et entièrement scellé.
- Tension de bobine 5 V CC
- Relais micro-miniature

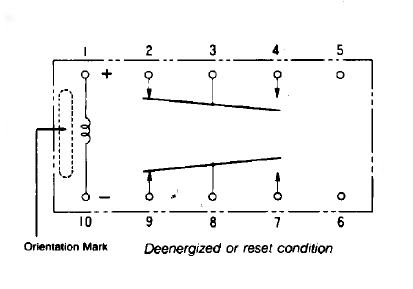

- Contact DPDT
- Tension de contact 125 V CA / 110 V CC
- Courant de contact 2A
- Charge de 62,5 VA / 30 W
- Résistance de bobine de 178 Ω
- Puissance de bobine de 140 mW
- Temps de fonctionnement de 6 ms
- Temps de relâchement de 4 ms
- Contact or sur argent

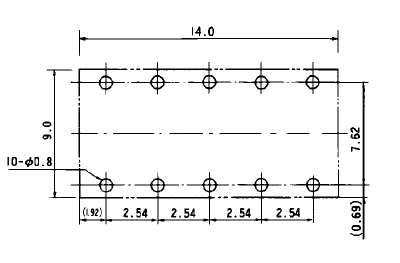

- Pas de 2,54 mm

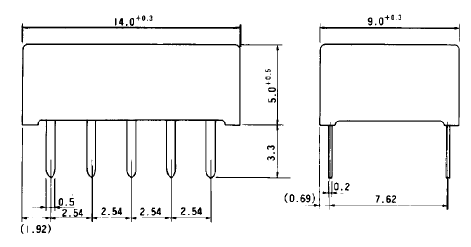

- 14 mm de long, 9 mm de large, 5 mm de haut
- Poids de 1,2 g
- Conforme à la partie 68 de la FCC
- Résiste à des surtensions de 1500 V
- Approuvé UL et CSA
| Résistance de la bobine |
178 Ω |
| Configuration des contacts |
DPDT |
| Hauteur |
5 mm |
| Longueur |
14 mm |
| Type de montage |
PCB |
| Température de fonctionnement |
-40 à +85°C |
| Puissance de commutation |
62,5 VA |
| Tension de commutation max. (CA) |
125 V |
| Largeur |
9 mm |
| Tension de la bobine (CC) |
5V |
| Courant de commutation max. |
2A |
