Oscilloscope multimètre Générateur de signaux 3 EN 1 portatif HO102S Bande 100 MHZ Hanmatek
CATEGORIE: OSCILLOSCOPES NUMIRIQUES
48 000 DA
DETAILS
HO102 100M Digital Oscilloscope 3 in 1 Dual Channel Portable Oscilloscope with Built-in Multimeter Function
Scope Mode:
- The waveform refresh rate is as high as 10000wfms/s.
- Dual-channel input, bandwidth up to 100MHZ, real-time sampling rate 250MSa/s, record length up to 8k points.
- Cursor measurement function.
- 7 kinds of automatic measurement functions.
- XY function
- One-key automatic setting function, convenient for testing and debugging.
Meter mode:
- 4 1/2 digits of the real effective value
- Standard voltage, current, resistance, diode, continuity, capacitance test
- The automatic range function is convenient for testing and debugging
- The maximum input voltage is 750V AC and 1000V DC
- Independent multimeter and oscilloscope input
- Read waiting function
- Relative measurement function
The USB Type-C interface not only supports mobile power supply, but also supports adapter charging and top computer connection. After connecting to the computer, the computer can recognize the oscilloscope as a USB flash drive and read the saved image or CSV waveform, which is convenient for viewing and analyzing waveforms or sharing waveform data in the future.
Save function: You can save 4 groups of settings, 4 groups of reference waveforms, 4 images, and 4 groups of waveforms in CSV format. The reference waveform and the measured waveform can be displayed on the same screen to facilitate waveform comparison. Self-calibration function. Up to 6 automatic measurement values can be displayed on the screen at the same time.

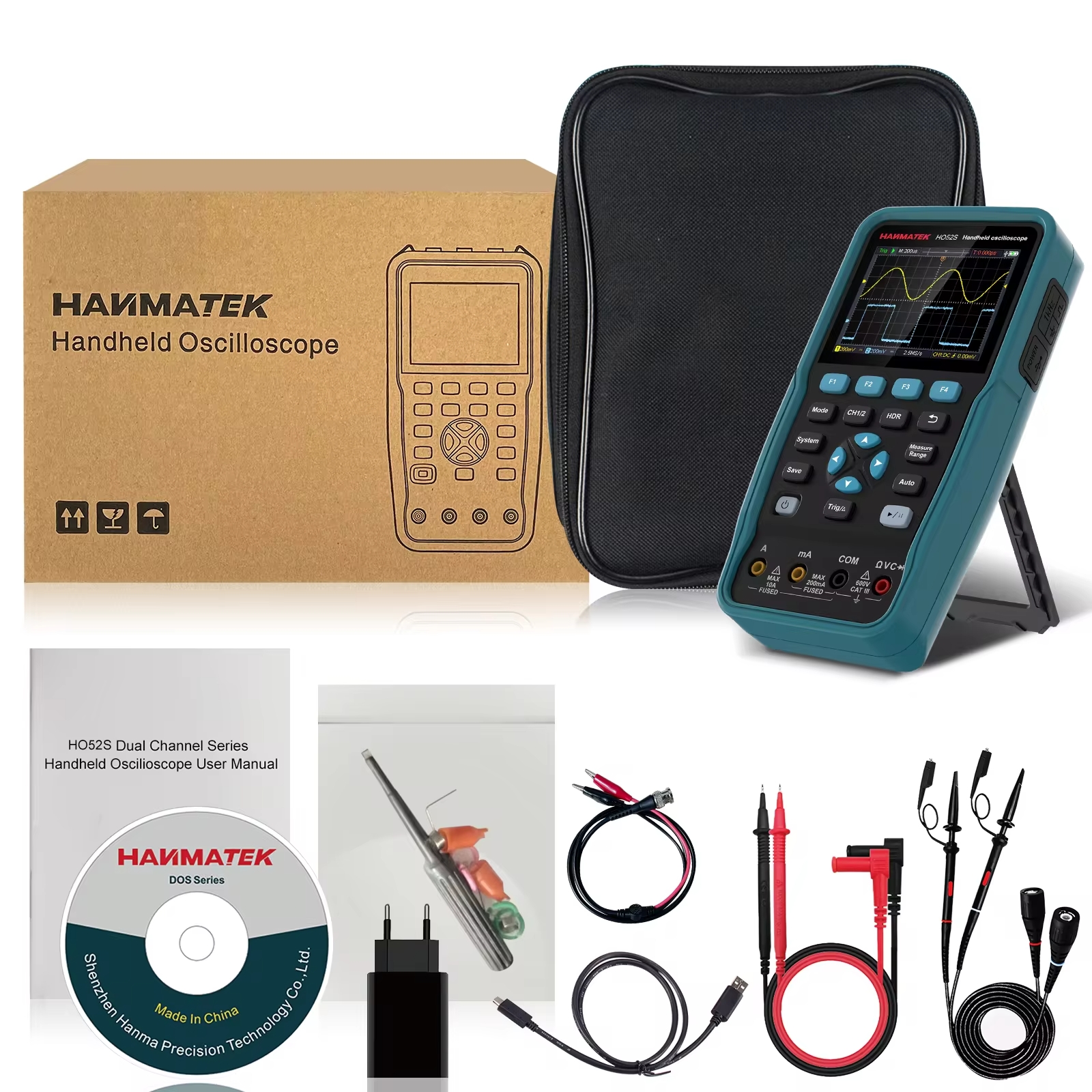

Package Included:
- 1 x Host
- 1 x Carrying Bag
- 1 x Oscilloscope Probe
- 1 x Adapter
- 1 x USB Cable
- 1 x Multimeter Pen
- 1 x User Manual
- 1 x CD
- 1 x Calibration
