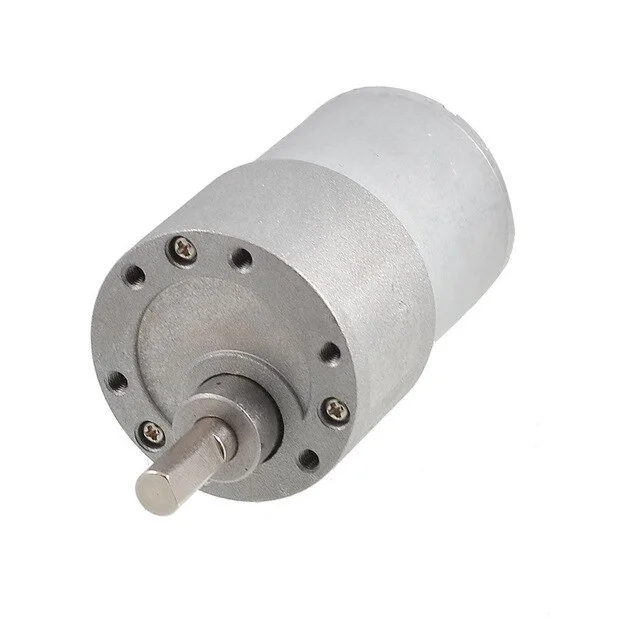

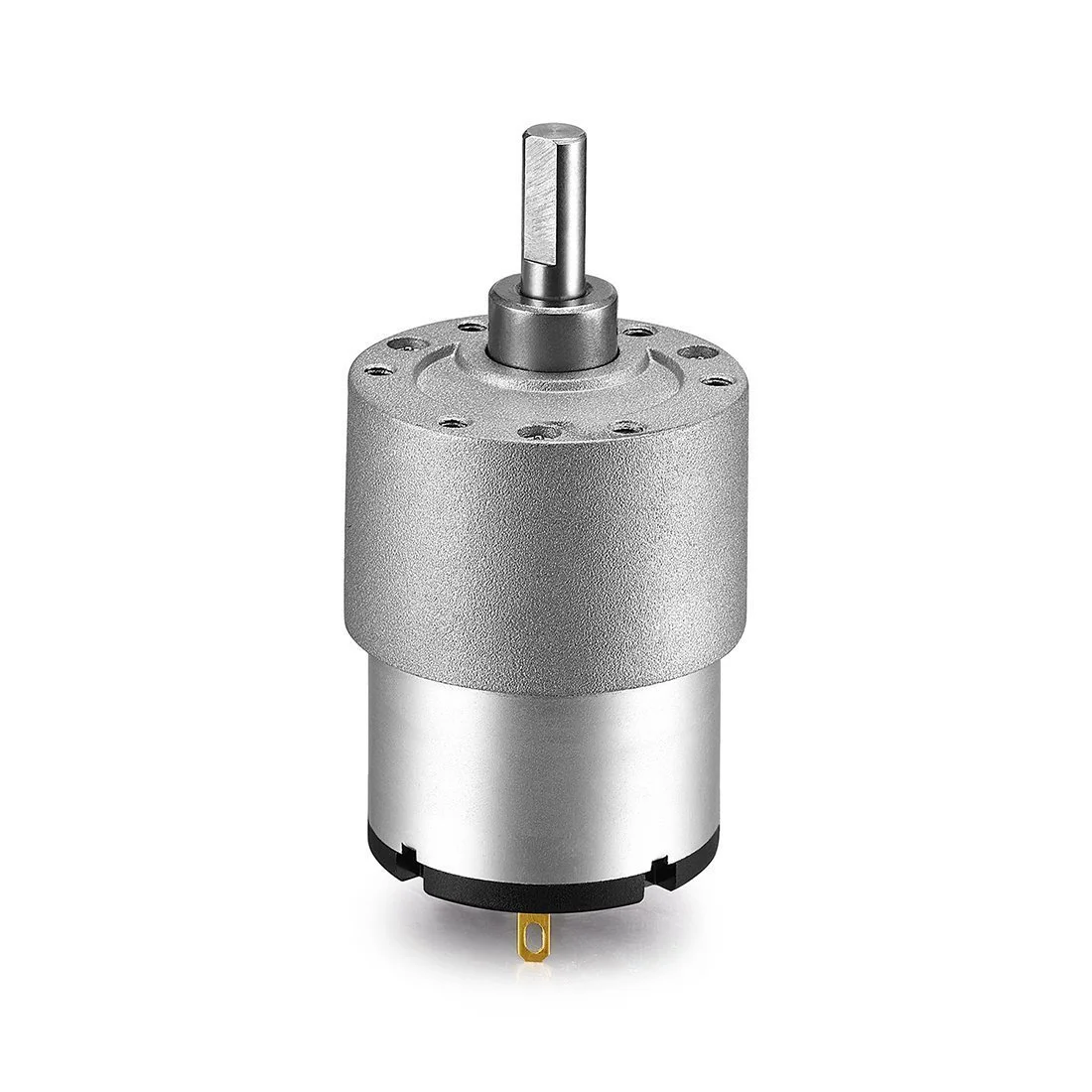

MOTEUR A ENGRENAGES CC 37GB 24V 320RPM CATEGORIE: MOTEURS DC 2 700 DA
Ruprure de stock
DETAILS
Présentation
Signaler cet article
JGB37-520 moteur à engrenages de réduction 12V, moteur de ralentissement, moteur à engrenages cc miniature, moteur de robot
Spécification:
12V 7/12/22/35/45/66/107/200/320/600/960RPMEn stock.
Rapport de réduction
6.3 10 18.8 30 56 90 131 168 270 506 810
Réduction de la longueur Mm 19 19 22 22 24 24 26.5 26.5 26.5 29 29
Vitesse sans charge Rpm 960 600 320 200 107 66 45 35 22 12 7
Courant à vide Ma ≥ 120 ≥ 120 ≥ 120 ≥ 120 ≥ 120 ≥ 120 ≥ 120 ≥ 120 ≥ 120 ≥ 120 ≥ 120
Couple nominal Kg. cm 0.3 0.5 0.67 1.5 2.8 4.5 6.5 8.4 13.5 18 22
Vitesse de charge nominale Rpm 670 420 224 140 75 46 32 25 16 8.5 5
Courant nominal Ma ≥ 400 ≥ 400 ≥ 400 ≥ 400 ≥ 400 ≥ 400 ≥ 400 ≥ 400 ≥ 400 ≥ 400 ≥ 400
Couple maximum Kg. cm 1 1.65 3.1 5 9 15 21 21 Charge maximale: 25kg
Remarque:
Cher ami,
Pendant que vous passez la commande pour ces types de moteurs, veuillez en laisserNous envoyer un message pour nous indiquer le modèle dont vous avez besoin.
Si vous ne laissez aucun message, nous vous enverrons 12V-200RPM pour vous.
