MOTEUR A ENGRENAGES CC 37GB 12V 66RPM
CATEGORIE: MOTEURS DC
2 700 DA
Ruprure de stock
DETAILS
Moteur à engrenages de réduction de vitesse à grand couple DC12V avec boîte de vitesses en métal 37GB520
Spécification:
Remarque: La vitesse inférieure est le couple plus important
Vitesse à vide: 7rpm, 12rpm, 22rpm, 35rpm, 45rpm, 66rpm, 107rpm, 200rpm, 320rpm, 600rpm, 960rpm
Vitesse à vide:7rpm, 12rpm, 22rpm, 35rpm, 45rpm, 66rpm, 107rpm, 200rpm, 320rpm, 600rpm, 960rpm
-
Puissance max: 10W
-
Couple maximum: 25 kg/cm
-
Diamètre du moteur: 33mm
-
Longueur du corps du moteur: 22.7mm
-
Diamètre de l'arbre de sortie: 6mm
-
Longueur d'arbre de sortie: 15mm
-
Diamètre de la boîte de vitesses: 37mm
-

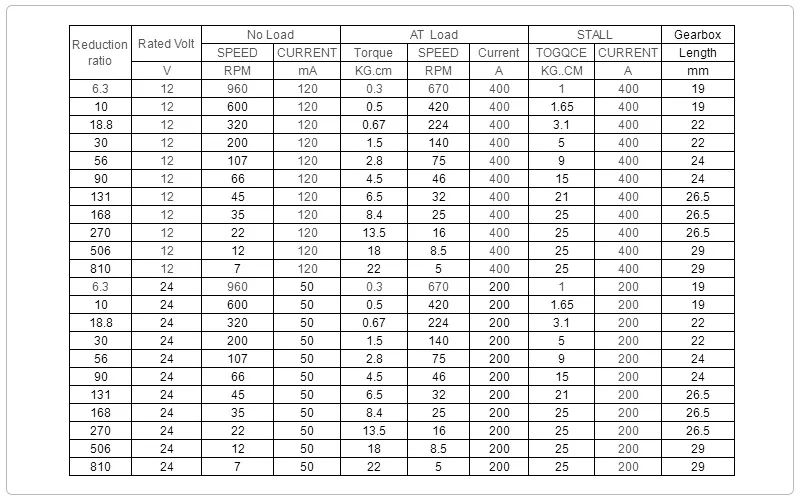

Longueur de boîte de vitesse: voir le tableau

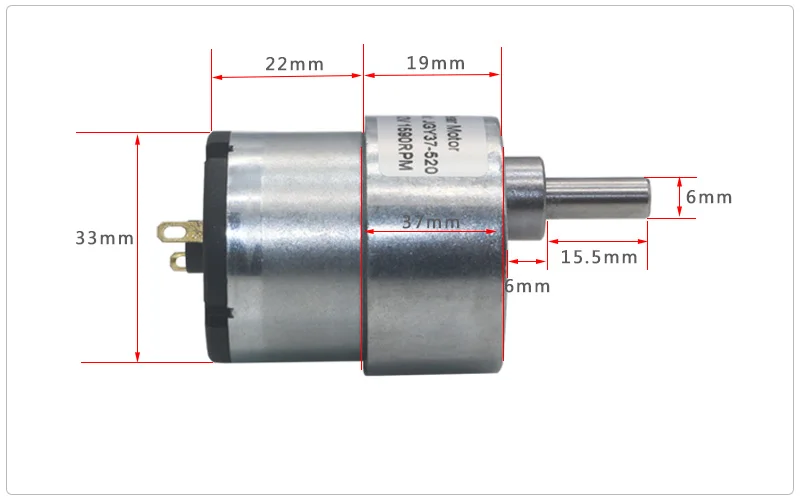

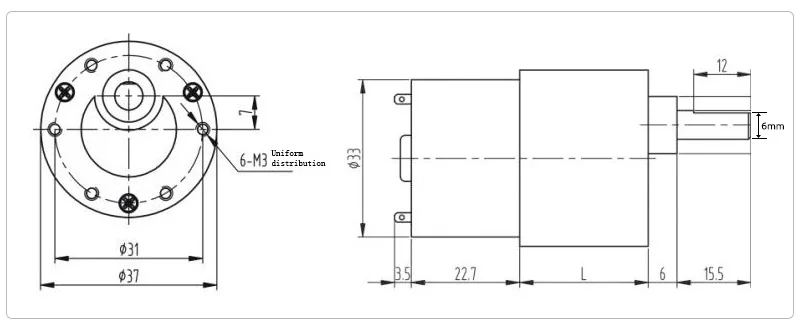

Taille et paramètre:

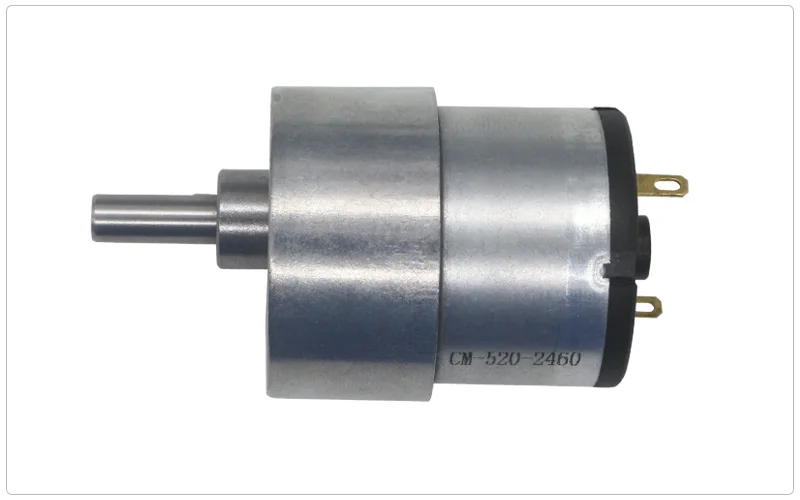

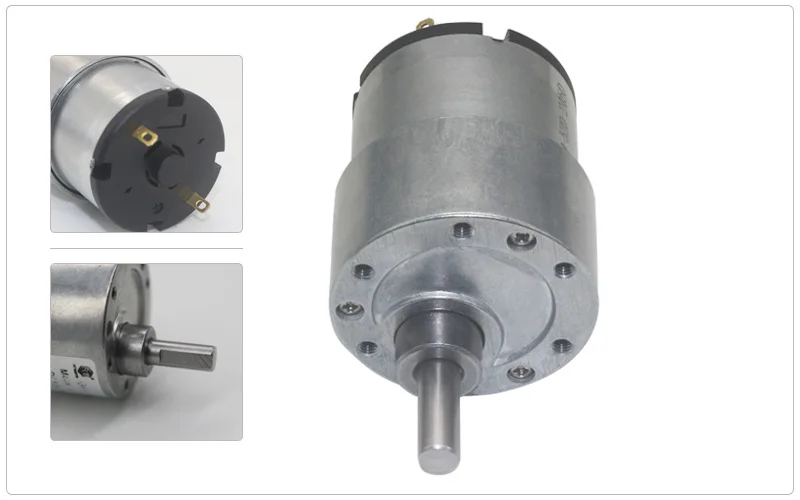

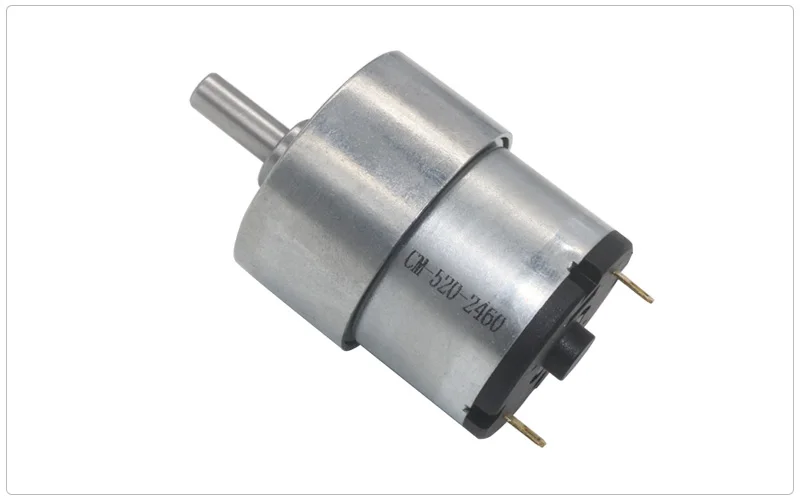

Gear Dc Motor Show:
