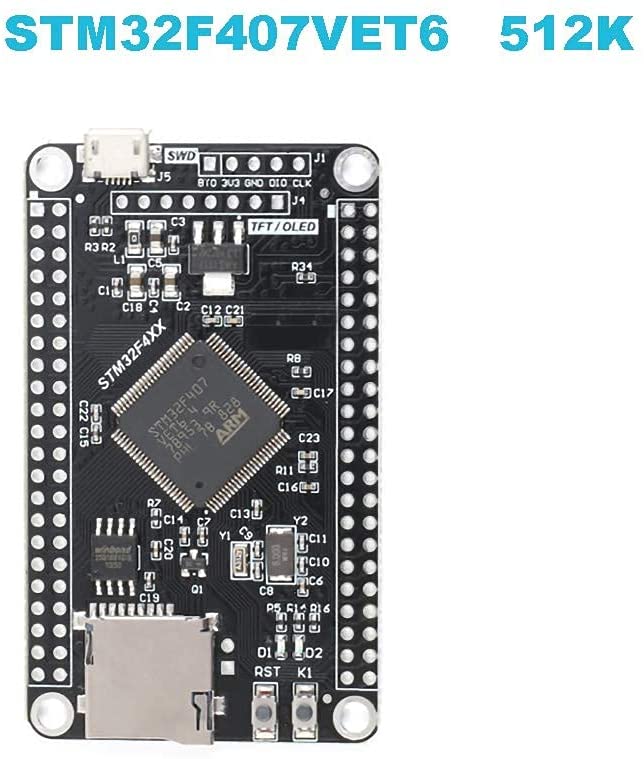

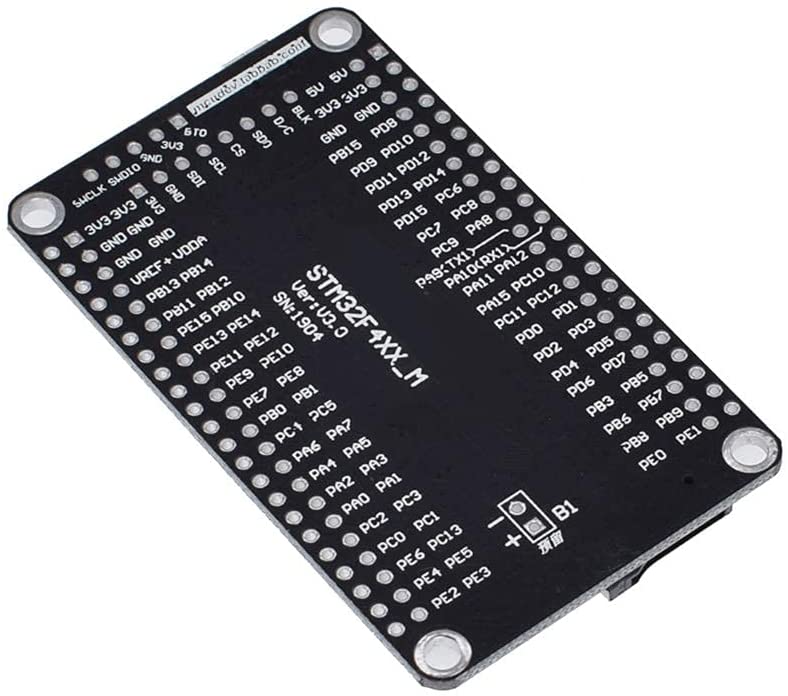

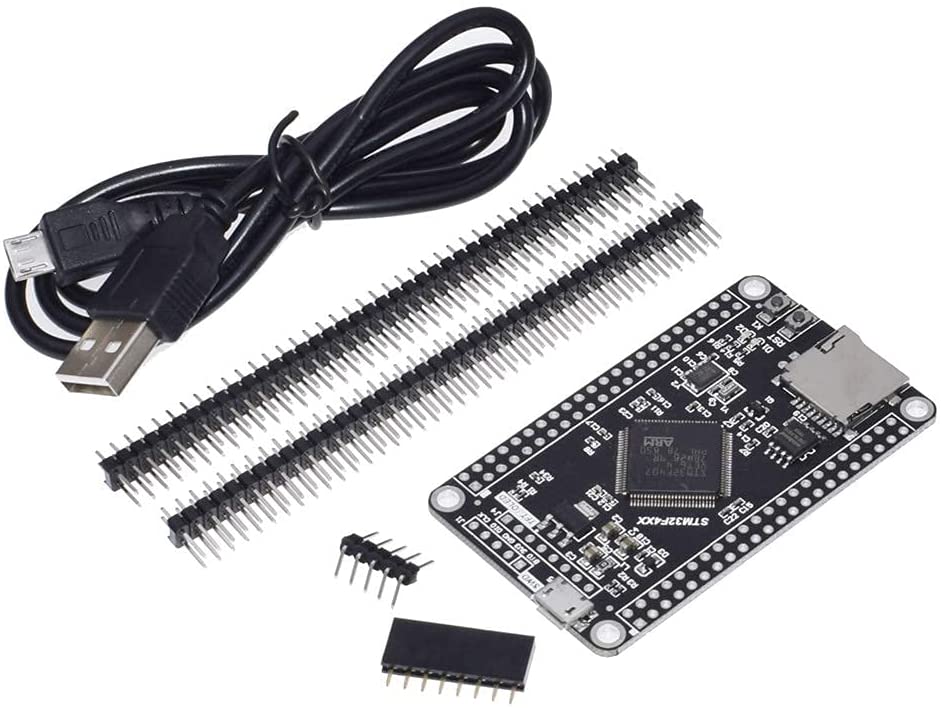

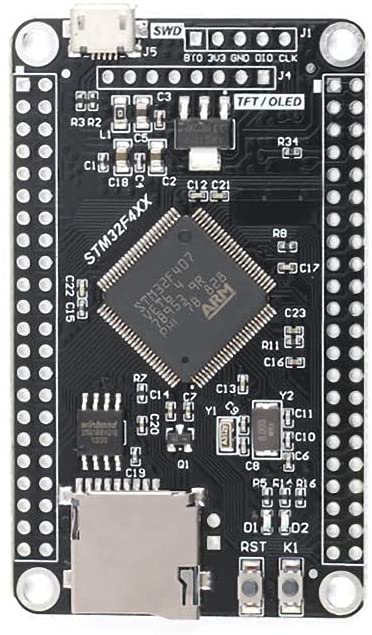

CARTE STM32F407VET6 512 kbit
CATEGORIE: STM32
ref: AA21
5 000 DA
ajouter au panier
DETAILS
Description du produit
Taille:STM32F407VET6
Spécifications :
Noyau : Cortex-M4 32 bits RISC
Caractéristiques : Instructions DSP à cycle unique
Fréquence de fonctionnement : 168MHZ, 210DMIPS/1.25DMIPS/MHz
Tension de travail : 1,8-3,6V
Paquet : LQFP100
Ressource de stockage : 512 Ko Flash (la spécification VG est d'une capacité de 1 M) 192+4 Ko SRAM
Ressources : 3*SPI,3*USART
2*UART,2*I2S,3*12C
1*FSMC,1*SDIO,2*CAN ;
1*contrôleur USB 2.0 FS/HS (avec DMA dédié)
1*USB HS ULPI (USB HS PHY externe)
1*10 /100Ethemet MAC
1*8 à 12-bit caméra parallèle interterrace
3*AD (12-bit,1us, temps partagé 24),2*DA (12-bit)
