Capteur de poids 20 KG
CATEGORIE: Capteur de Poids ⚖️🇰🇬
ref: EE22
800 DA
ajouter au panier
DETAILS

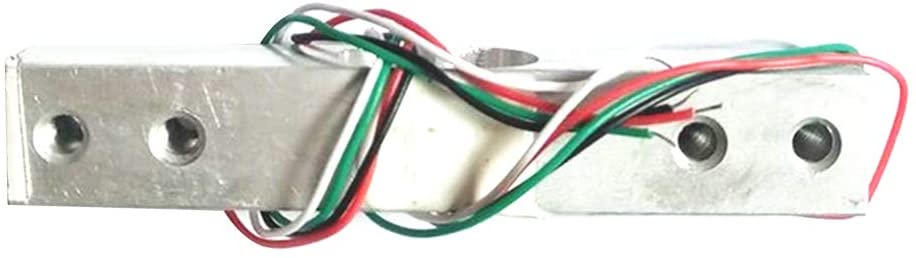

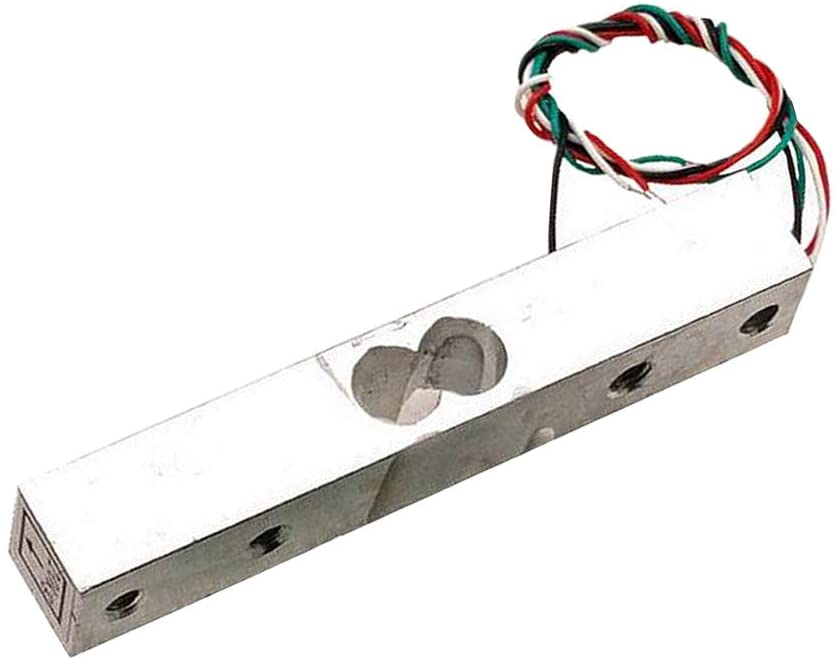

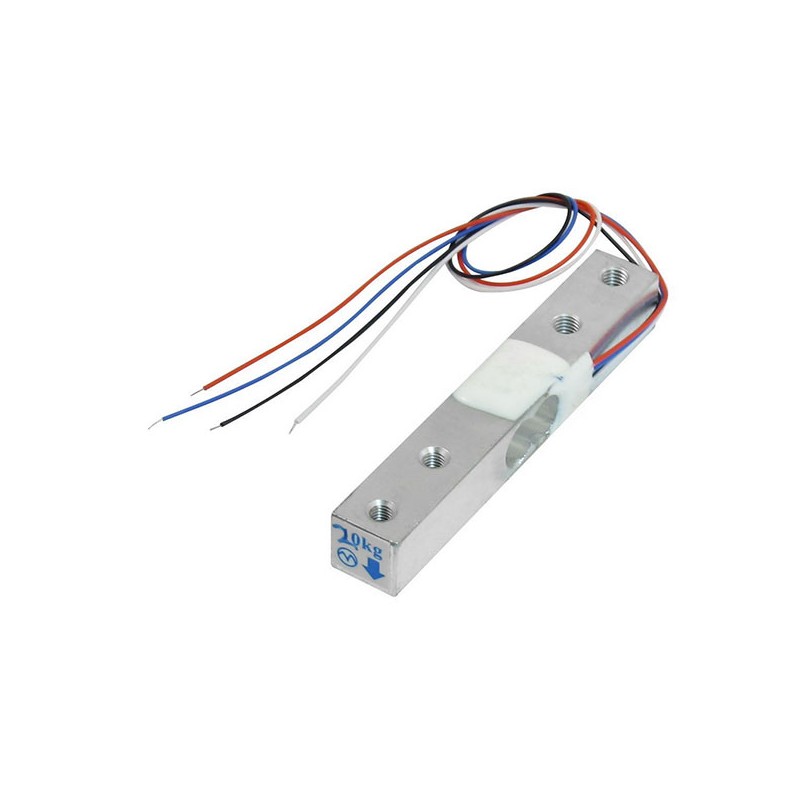

Capteur de poids, cellule de charge 20 kg
Product Name: Load Cell FZ1439
Rated Load: 20 Kg
Rated Output: 1.0mV/V±0.15mV/V
Zero Output: ±0.1mV/V
Creep: 0.03%F.S./30min
Input End: Red+, Black-
Output End: Green+, White-
Input Impedance: 1115±10%Ω
Output Impedance: 1000±10%Ω
Total Size: 80 mm x 13 mm x 13 mm (L*W*H)
Recommended operating voltage: 3 ~ 15v DC
Cable Length: 200mm
Material: Aluminium Alloy
